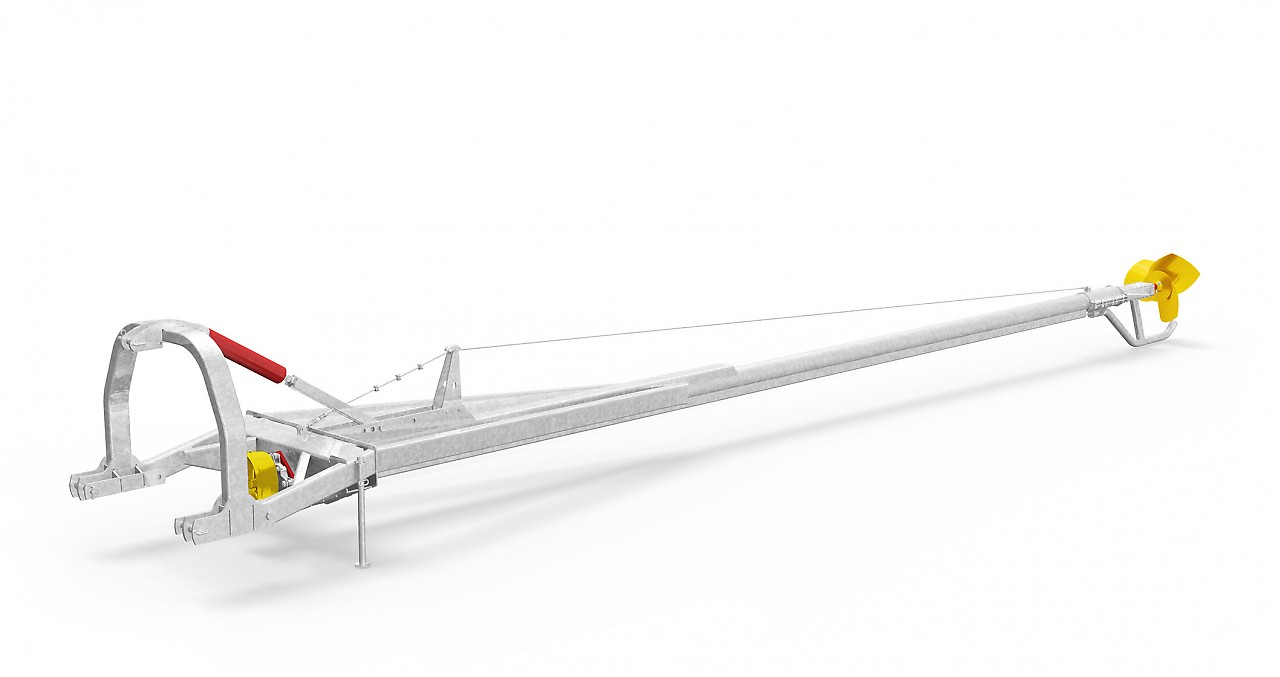

PTO Mixer rigid Typhoon

Description

The PTO mixers Typhoon are the robust ones with solid construction of frame, for open slurry pits and slurry lagoons. There are three different versions for selection: the standard version, the reinforced version the extra strong version. All Typhoon mixer are with long lasting ball bearing free special mounting of the drive shaft in the aggressive slurry - insensitive to leftovers, straw and animal hair.

At a glance

  • There are 3 different types.
  • Completely galvanized.
  • Special wooden bearings in the aggressive slurry.
  • Length of mixer 4,4 - 9,3 m.

Applications

  • For open slurry pits and slurry lagoons.

Versions

Standard version

  • For tractors with up to about 100 HP
  • Mixer tube 101 mm ⌀
  • Mixer shaft 35 mm ⌀
  • Completely galvanized (Propeller painted)
  • Incl. high efficiency propeller TR-PH 500 (500 mm ⌀)
  •
  •
  • Length of mixer: 4,4 m – 7,4 m

Strong version

  • For tractors with more than about 100 HP
  • Mixer tube 140 mm ⌀
  • Mixer shaft 35 mm ⌀
  • Completely galvanized (Propeller painted)
  • Incl. high efficiency propeller TR-PH 500 (500 mm ⌀)
  • Reinforced three-point jack
  • Specially reinforced mounting
  • Length of mixer: 6,3 m – 8,3 m

Extra strong version

  • For tractors with more than about 100 HP
  • Mixer tube 140 mm ⌀
  • Mixer shaft 45 mm ⌀
  • Completely galvanized (Propeller painted)
  • Incl. high efficiency propeller TR-PH 600 (600 mm ⌀)*
  • Reinforced three-point jack
  • Specially reinforced mounting
  • Length of mixer: 6,3 m – 9,3 m

Media

Accessories

Accessories

  • RECK Agrartechnik - Propeller stay long

    Propeller stay long

  • RECK Agrartechnik - Propeller protection ring

    Propeller protection ring

    To protect the high efficiency propeller

  • RECK Agrartechnik - Propeller protection ring with tyre fixation

    Propeller protection ring with tyre fixation

    Propeller protection ring with tyre fixation for plastic lined lagoons (without tyre)

  • RECK Agrartechnik - High efficiency shredder with counter blade

    High efficiency shredder with counter blade

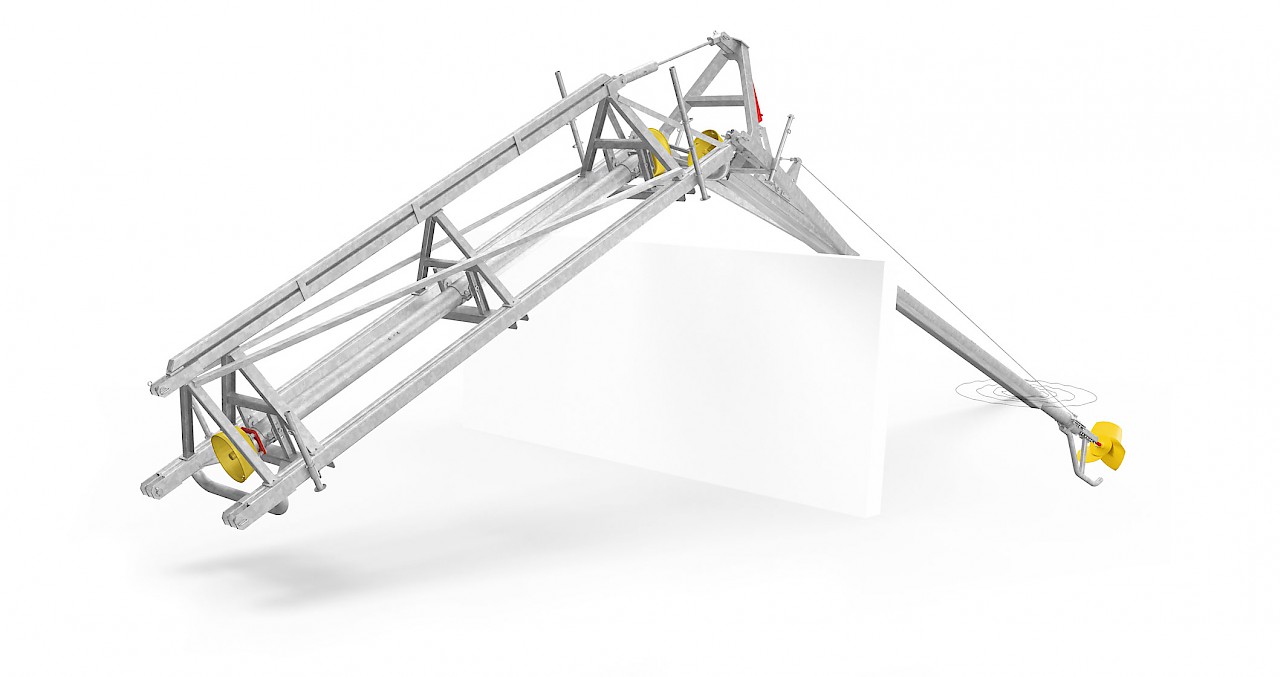

  • RECK Agrartechnik - OCELOT - Frame Extension

    OCELOT - Frame Extension

    With the Ocelot frame extension you can mix slurry towers up to 3 m above the ground level.

  • RECK Agrartechnik - Reverse transmission

    Reverse transmission

  • RECK Agrartechnik - Reinforced bearing unit for standard mixing rod.

    Reinforced bearing unit for standard mixing rod.

  • RECK Agrartechnik - Cardan shaft

    Cardan shaft

    Cardan shaft required.
