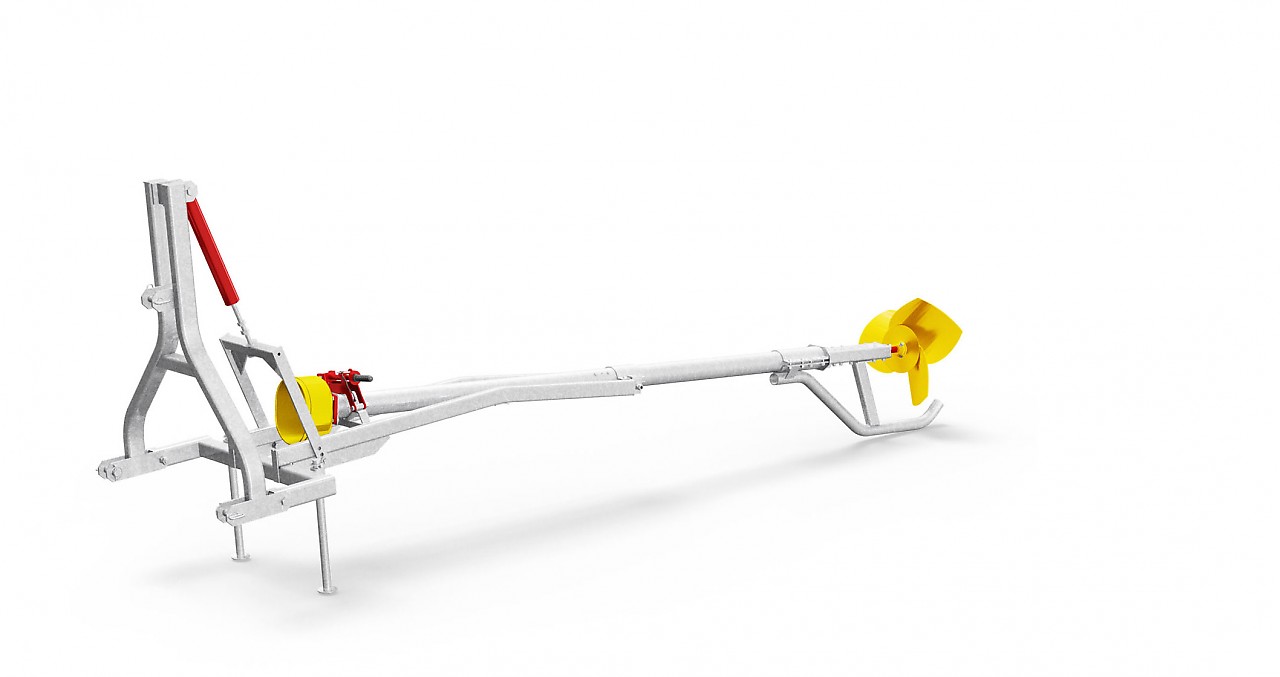

Folding PTO Mixer Jaguar

Description

The mixer model Jaguar can be used in small slurry pit openings (from about ø 60cm) due to the cranked folding frame. The attachment of the mixer is on the tractor’s three point linkage (draft and upper link). Easy and smooth insertion of the slurry mixer with the additional hydraulic cylinder, independent of the tractor’s hydraulic which is often inexact. A regular and even bending of the two universal joints of the standard cardan shaft is possible through the hydraulic cylinder and the tractor’s hydraulics. This allows operating with little wear on the standard cardan shaft. The folding PTO mixer Jaguar is available from 4,60 m to 7,60 m length (interim lengths are available on request)

At a glance

  • For an opening of 60 cm ø
  • Completely galvanized
  • Long lasting, ball bearing free special slide bearings
  • Incl. high efficiency propeller
  • Length of mixer 4,6 m - 7,6 m

Applications

  • For covered and open slurry pits

Versions

Standard version

  • For an opening of 60 cm ⌀
  • For tractors with up to about 100 HP
  • Mixer tube101 mm ⌀
  • Mixer shaft 35 mm ⌀
  • Completely galvanized (Propeller painted)
  • Incl. high efficiency propeller TR-PH 500 (500 mm ⌀)
  •
  •
  •
  • Length of mixer: 4,6 m, 5,6 m, 6,6 m

Strong version

  • For an opening of 80 cm ⌀
  • For tractors with more than about 100 HP
  • Mixer tube140 mm ⌀
  • Mixer shaft 35 mm ⌀
  • Completely galvanized (Propeller painted)
  • Incl. high efficiency propeller TR-PH 500 (500 mm ⌀)
  • Reinforced folding frame
  • Specially reinforced mounting
  •
  • Length of mixer: 4,6 m, 5,6 m, 6,6 m, 7,6 m

Extra strong version

  • For an opening of 80 cm ⌀
  • For tractors with more than about 100 HP
  • Mixer tube140 mm ⌀
  • Mixer shaft 45 mm ⌀
  • Completely galvanized (Propeller painted)
  • Incl. high efficiency propeller TR-PH 600 (600 mm ⌀)
  • Reinforced folding frame
  • Specially reinforced mounting
  • Power take off 1 3/4”
  • Length of mixer: 4,6 m, 5,6 m, 6,6 m, 7,6 m

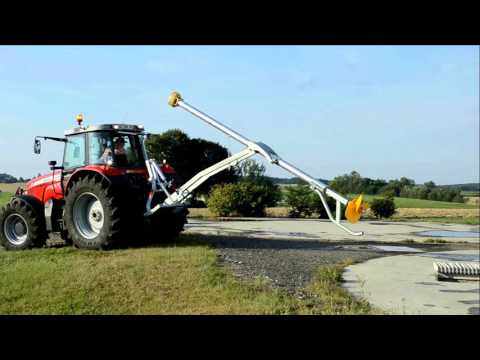

Media
